HCM-5080 and HCM-5070 Automatic Pump and Controller Systems
ASTM C39, ASTM C78, ASTM C293, ASTM C469, ASTM C496, ASTM C1019, ASTM C109/C109M, BS EN 12390-32

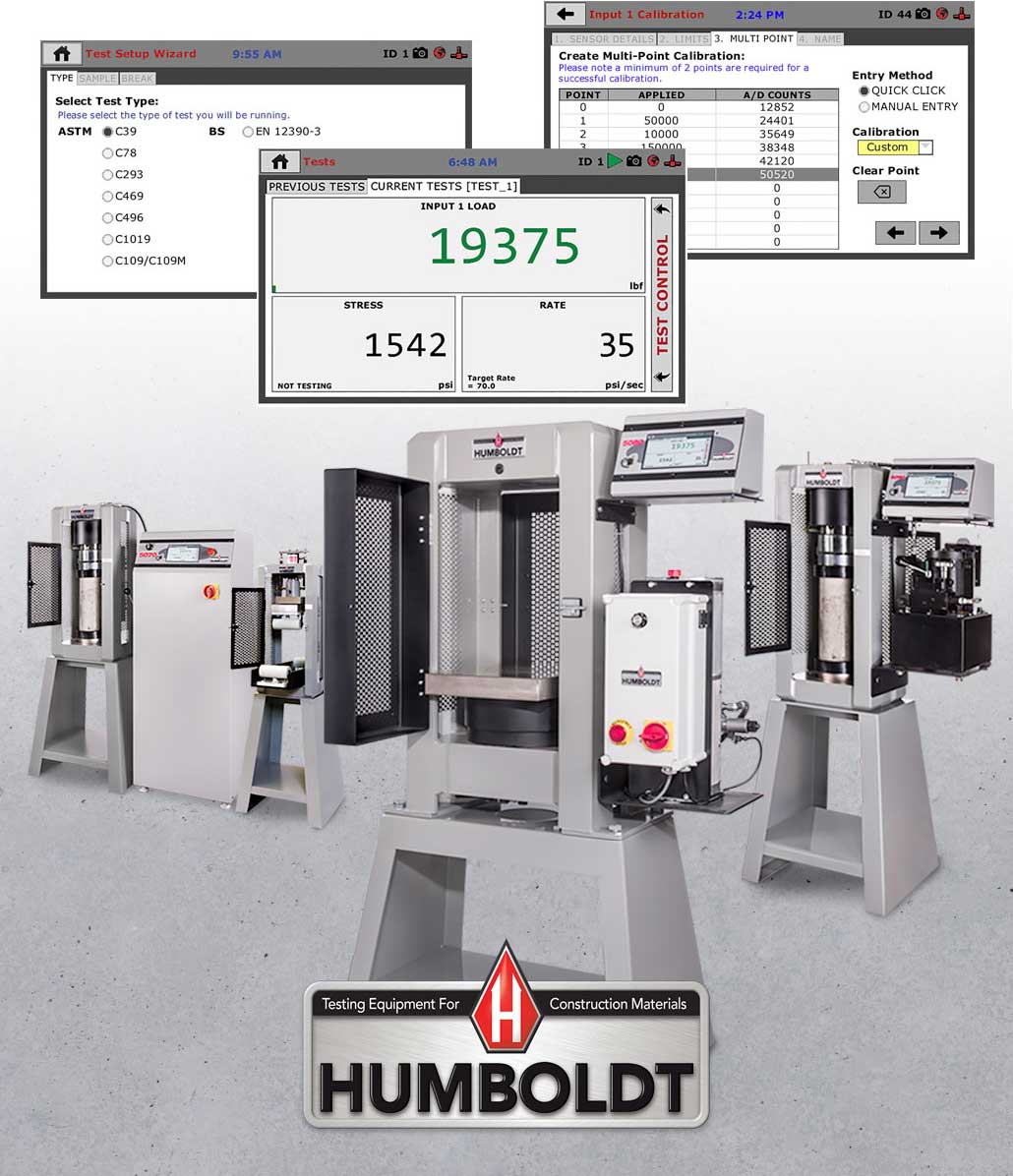

Humboldt’s Automatic Pump and Controller System is the most versatile, accurate and easy-to-use concrete compression machine controller available today.
It is designed to make fast work of testing cylinders, cubes and beams with any of Humboldt’s concrete compression machines. It provides an easy-to-use automated testing workflow — just choose the test standard you wish to use from the menu, and you will be quickly guided through the test setup and testing process. It is the ideal automatic system whether you are purchasing a new concrete compression frame or upgrading an existing frame.
The system features a robust, reliable and cool-running 1hp, multi-piston pump, which works together with the controller for full operational control. The controller’s high-resolution, 7-inch, color, touchscreen provides accurate, precision machine operation, setup and calibration. Setup and operation are simple with step-by-step procedures.
Calibration is also easy with the controller, allowing from 1 to 10 points to calibrate the machine in any increment chosen. It also provides an accurate motor-control knob, which allows calibrators to dial in precise calibration loads.
The system provides two channel inputs for load, which can be used to control two separate compression frames when using the HCM-HP4014 selector valve accessory. Two additional channels are provided for displacement, which provides an easy solution for determining Poisson’s ratio and Young’s modulus testing.
The controller also provides data acquisition capabilities of up to 1000 tests with 3000 points per test. This information can be exported via the front USB port and a flash drive.
Supports the Following Standards:
ASTM C39, ASTM C78, ASTM C293, ASTM C469, ASTM C496, ASTM C1019, ASTM C109/C109M, BS EN 12390-32
Upgrade Your Existing Compression Frame
Looking to upgrade your existing compression machine? Now you can easily upgrade it with one of Humboldt’s automatic compression machine controllers — the HCM-5080 or the HCM-5070. Both controllers come with our robust, reliable and cool-running 1hp pump, which works together with the controller for full operational control of your compression machine.
Both are pre-programmed to run the following tests:
ASTM C39, ASTM C78, ASTM C293, ASTM C469, ASTM C496, ASTM C1019, ASTM C109/C109M, BS EN 12390-3.
The HCM-5080 upgrade kit comes with the necessary brackets and mounting hardware and both controllers are available with new compatible transducers, making these upgrade kits a quick and easy upgrade.

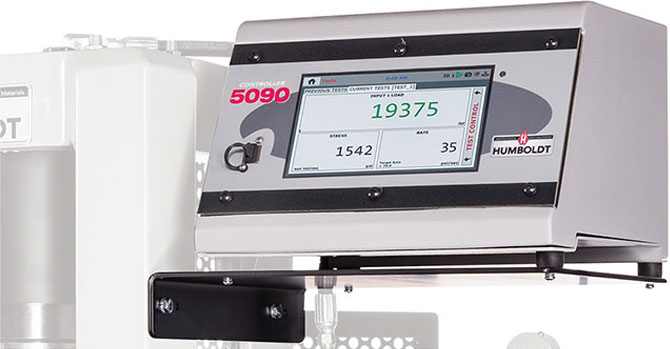

Don’t want an automated controller? You can also upgrade your machine with the HCM-5090 digital indicator and use your existing pump or add one of our manual pumps as well. The HCM-5090 is also pre-programmed to run all the tests listed as well.
Features:
- Provides two channel inputs for load, which allows for the control of two separate compression frames
- Provides two additional channel inputs for displacement, which allows performing extensometer and compressometer testing
- 7", high-resolution color touch-screen display with live readout, graphical and tabular display
- Easy test setup, just choose the standard you wish to test for and the controller will walk you through the complete setup
- Rapid approach, initial load and testing load are automated during test cycles
- Automatic control of test parameters
- Provides data acquisition of one reading per second
- Integral storage within the controller of up to 1000 tests and 3000 points per test
- Simple, Fast and accurate machine calibration with accurate, motor-control knob
- Displays in Imperial or metric numbers
- Both Humboldt Controllers are: 120/220V 50/60z
- The pump is either 120V 60Hz or 220V 50/60Hz

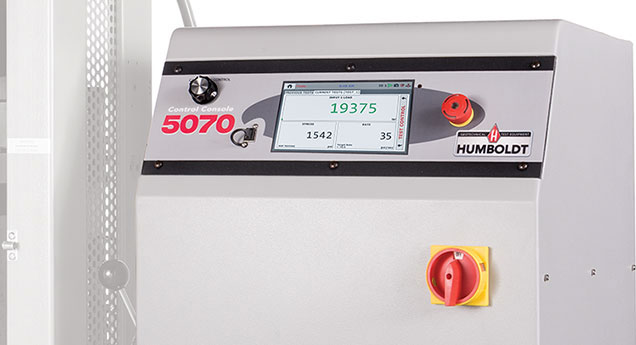

HCM-5070 Console System
Humboldt’s HCM-5070 is a console version of the HCM-5080 automatic controller system. The HCM-5070 Console System provides the same features as the HCM-5080, which includes our robust, reliable and cool-running 1hp, multi-piston pump, which works together with the controller for full operational control. The controller’s high-resolution, 7-inch, color, touchscreen provides accurate, precision machine operation, setup and calibration. Machine setup and operation functions in the same fashion as the HCM-5080, with the ability to choose an ASTM specification and letting the controller guide you through the setup and testing function. The HCM-5070 can be used to control two separate compression frames when using the HCM-HP4014 selector valve accessory. This selector valve can be mounted directly to the console.
HCM-5070 Console System for two Compression Machines
The HCM-5070 Console Controller System set up for two separate compression frames, one for cylinders and one for low strength beams. The System can easily switch control between the two frames
via the HCM-HP4014 Selector Valve.
Controller System Specifications
| HCM-5080 HCM-5080.4F |
120V 60Hz 220V 50/60HZ |
| HCM-5070 HCM-5070.4F |
120V 60Hz 220V 50/60HZ |
| Display | 7” (178mm) VGA (480 x 800) Resistive-Touch Screen |
| RAM | 4GB |
| Analog to Digital Converter | 24 bit |
| Data Acquisition | 4 Channels |
| Data Speed | 1000Hz (1kH) |
| Logging Speed | 1 Reading Per Second |
| Test Storage | 1000 |
| Points per Test | 3000 |
Accessories for HCM-5080 & HCM-5070
| Frame Selector Valve | HCM-HP4014 |
| Pressure Transducer, 10,000 psi with Cable and Plug | HCM-4177 |
| Pressure Transducer, 10,000 psi | HCM-4177.1 |
| Cable for Pressure Transducer 10,000 psi with Plug | HCM-4177.4 |
| ISO VG 46 Hydraulic Oil, 1gal. (2gal. required) | HCM-005050 |
