Dean Stark Moisture Test Apparatus, Gas Type

The Dean Stark moisture test apparatus is used to determine the water content in petroleum products, tars, emulsified asphalts and other bituminous materials by the distillation method. The distillation process allows the water in the test sample to be isolated and collected in the receiver of the Trap. This model uses an aluminum still, which is heated by a gas, ring burner. The complete set is comprised of the items listed in the table below.

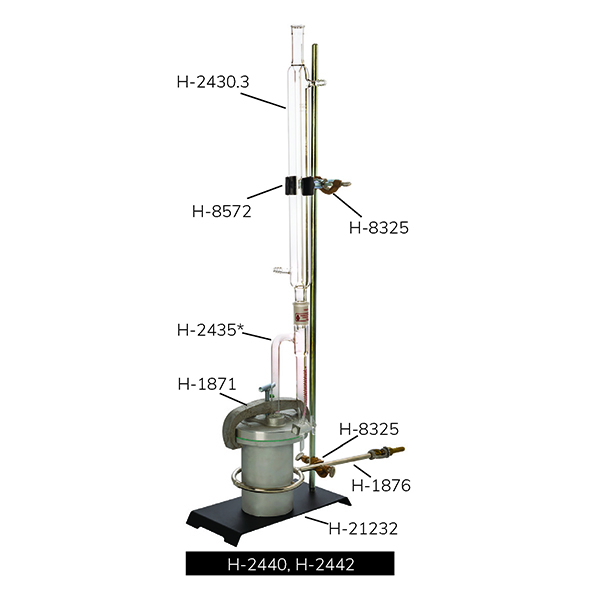

Components

• Ring burner: H-1876
• Aluminum still, 0.95L: H-1871
• Distillation trap, 20ml, 25ml, or 10ml: H-2435.25, H-2435.10
• Condenser, liebig: H-2430.3
• Support stand: H-21232
• Clamp, brass: H-8325
• Clamp, round jaw, coated: H-8572
