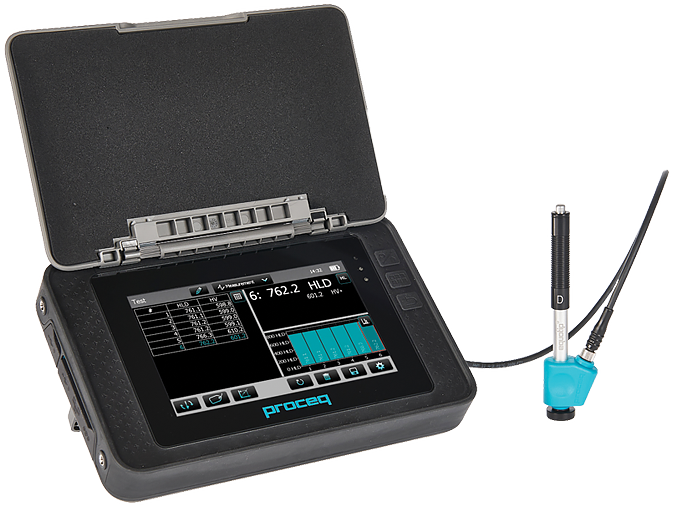

Equotip 550

Extensively used for rock hardness and for investigating weathering effects on rocks. It can be used for correlation to unconfined or uniaxial compressive strength (UCS); testing on weak rocks, porous rocks, and those with thin weathering crusts; cores; and rectangular blocks, and investigations of hardness near edges of samples. The impact energy of Device D is approximately 1/200th that of the Type N rebound hammer. This makes it very suitable for testing on historical sites, very soft types of rock that cannot be tested with a rebound hammer and also on brittle rock cores that would be damaged by a rebound hammer. The impact Device S features the same impact energy, but with a much more durable ceramic impact body that is more suited to heavy users on harder rock.

Basic Unit includes:

  • Equotip Touchscreen
  • Battery
  • Power Supply
  • USB Cable
  • Surface Roughness Comparator Plate
  • DVD with Software
  • Documentation
  • Carrying Strap
  • Carrying Case

Order Device D or Device S along with the appropriate calibration blocks.

Read More
Purchase Options

Part Number & Name
Price
QTY
H-3417
Equotip 550 Basic Unit
$6,680.00
H-3417.1A
Equotip Leeb Impact Device S
$2,490.00
H-3417.2A
Equotip Leeb Impact Device D
$1,675.00
Add to Saved Cart

Accessories


Part Number & Name
Price
QTY
H-3418.3
Device Cable 5 ft (1.5m)
$143.00
H-3418.4
Device Cable 15 ft (5m)
$80.50
H-3418.5
Equotip Test Block S -815 HLS/-56 HRC
$1,200.00
H-3418.7
Equotip Test Block D/DC -775 HLD/ -56HRC
$1,100.00
Add to Saved Cart
