LIGHT WEIGHT Deflectometer

Fast, accurate and easy compaction control!

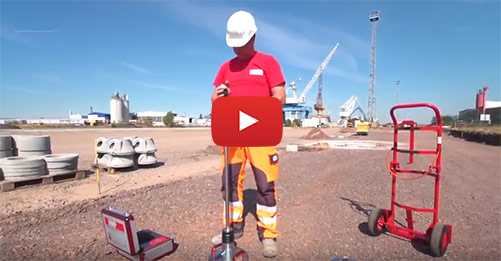

Light Weight Deflectometers, or LWD, are portable, light weight tools used to determine the load bearing capacity and overall compaction quality of soils, non-cohesive sub-bases and soil improvements in as little as two minutes.

LWDs measure a deflection and provides an estimated modulus value which is based on the force that would be required for that soil type to generate a deflection. This is an important measurement as the actual modulus on site should be compared to the design specification values.

Applications for this non-destructive testing method include road/railway construction, earthworks, quality protection and canal construction, compaction monitoring in pipe trenching and cable ducts or testing of pavement bedding and foundation backfill. The LWD provides a simple, fast and repeatable onsite testing method which increases your quality control efforts and provide cost-saving benefits.

Areas of application:

- Quality control in road and railway construction
- Quality assurance in earth works and canal construction
- Compaction monitoring in pipe trenches and cable ducts
- Testing of pavement bedding, foundation backfill

Application Codes:

ASTM E2835-11 American Standard;
TP BF-StB B 8.3 German Engineering Code
UNE 103807-2:2008 Spanish standard;
RVS 08.03.04 Austrian standard
TB 10102-2004, J338-2004 Chinese Standard;
ZTV E-StB 09, ZTV A-StB 97, RIL 836
Comprehensive correlations to other
test methods ensure comparability.

HMP LFGPro  (HD-4129.3F)

USB • GPS • BLUETOOTH • APP • PRINTER • SOFTWARE

Technical Features:

• Large colorful graphic display 3,5"
• Lightsensor-controlled backlighting (guaranteed optimum readability, even in direct sun)
• Integrated GPS and Bluetooth
• Efficient, fast 32-bit processor
• Internal memory for up to 1000 tests
• High-performance rechargeable lithium-polymer-battery
• Android-App transfers data to tablet or smartphone
• Web-based evaluation software provides real-time measurement data anywhere
• Device, app, software many languages

Download prospectus >
Download brochure >

HMP LFG4  (HD-4130.3F)

Reduced to the basics – successfully in use for more than 30 years worldwide!

Technical Features:

• Large graphic display (62 x 35 mm)
• Comfortable menu navigation
• Acoustic signal when ready to measure
• Bluetooth interface
• Printer port
• GPS port
• Internal memory for 500 tests
• More than 1000 tests with one battery charge

Data Transfer and Access:

• Data transfer to table, smartphone or PC via Android-App HMPtransfer, USB stick or cable
• Web-based evaluation software HMPreport, password protected
• Real-time availability of the measurement data from any location
• Menu, app, software in many laguages

Download brochure >

Intuitive menu navigation:
Choose, confirm, done!

Easy and quick selection of
the stored data

Individual adjustments

HMP LFG4 HMP LFGPro

Additional Soil Testing Equipment for Field Applications may be required and Humboldt offers a full line of equipment to meet your needs.

Compaction Density — Our soil density and compaction equipment is typically used to gather soil samples for Proctor testing. Our Nuclear Density Gauges are one of the most accurate methods to determine moisture content in a variety of materials.

California Bearing Ratio (CBR) — The CBR field test set is designed for making CBR determinations in the field, allowing for quick relative strength determinations without having to rely on lab tests.

Augers & Auger Sets — Humboldt offers a variety of augers and accessories in different sizes and for different soil types to aid in getting to deeper testing depths.

Soil Moisture Testers — The soil moisture levels at the time of construction plays a critical role in construction activities. Humboldt’s provide accurate on-the-spot testing capabilities.

Resistivity — These meters provide resistance measurements and are available in 2-, 3-, and 4-electrode applications.

Contact a Humboldt product specialist at: 1.800.544.7220 ext. 6303
to learn more about the LIGHT WEIGHT Deflectometer
